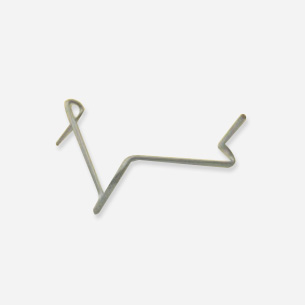

Connecting Clip
Application
Used to connect ceiling section or U section to intermediate channel or tube section respectively
Dimensions in (mm)
2.64 Ø
METAL ACCESSORIES

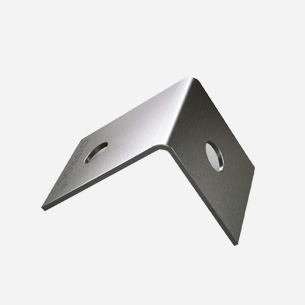

Soffit Cleat
Application
To hold the ceiling angle/MS flat/level clip suspensions of framework from the structural soffit
Dimensions in (mm)
27 x 37 x 25 x 1.6

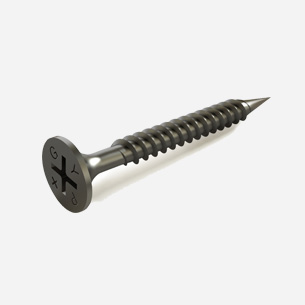

Drywall Screw
Application
Corrosion resistant self-tapping zinc plated steel screws with countersunk cross-heads, supplied with screw driver bits. To fix plasterboard to metal framework
Dimensions in (mm)
3.5 x 25
3.5 x 35
3.5 x 50

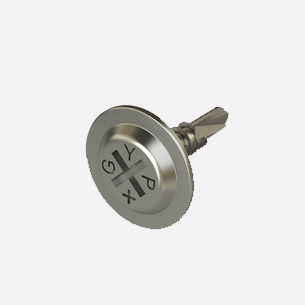

Metal To Metal Screws
Application
Used for channel screwing, metal screws with wafer thin head.
Dimensions in (mm)
4.2 x 13

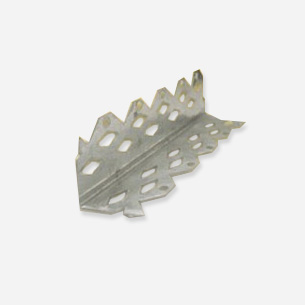

Angle Bead
Application
Perforated galvanized metal bead for reinforcing external 90° angles where maximum protection is required
Dimensions in (mm)
25 x 25 x 0.5 x 2440
25 x 25 x 0.5 x 3660

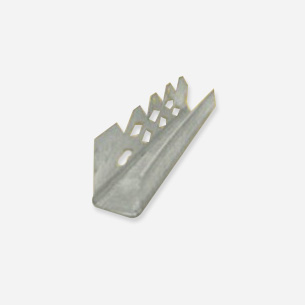

Edge Bead
Application
Galvanized metal bead, having an asymmetric profile with one perforated leg to accommodate jointing material. It is used to protect the exposed and unsupported edges of plasterboard. Also used to form perimeter detail to cover the edges of plasterboard
Dimensions in (mm)
25 x 10 x 9.5 x 0.5 x 2440
25 x 10 x 12.5 x 0.5 x 2440
25 x 10 x 15 x 0.5 x 2440
25 x 10 x 15 x 0.5 x 3660
25 x 10 x 9.5 x 0.5 x 3660
25 x 10 x 12.5 x 0.5 x 2440

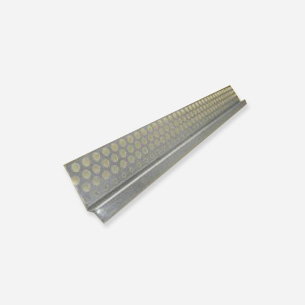

Shadowline Stopping Bead
Application
Shadowline stopping bead is a semi-perforated galvanized section used for minimizing the appearance of non-aligned walls and ceilings by giving a clean, straight, shadow edge on installation and finishing. They are suitable for ceiling perimeters, door jambs, windows etc.
Dimensions in (mm)
10 X 9 X 28 X 0.4

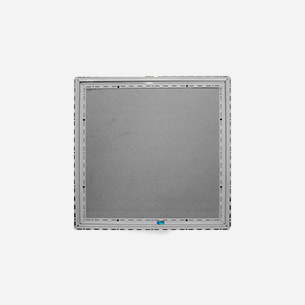

Access Panel
Application
Gyproc Access panel provides protected access to service areas towards installation or repair of utility services. The product is ideal for service areas carrying electrical cabling, HVAC ducts, valves and any other conduits. It consists of gypsum plasterboard fixed into a powder coated Aluminium frame structure with white RAL9001 finish, beaded frame and is equipped with a push latch along with safety cable.
Dimensions in (mm)
600 x 600
600 x 1200
